Wind - Photovoltaic Hybrid System

TECHNICAL DATA

  • Wind generator: 1 kW
  • PV generator: 2 kW
  • System DC/AC controller:
    • Based on  microprocessor
    • 48VDC, 50A
    • full battery controll
  • DC/AC modified sinewave inverter
    • 48VDC - 230 VAC / 50Hz
    • maximum power: 3,5 kW
  • Auxiliary Genset:
    • 230 VAC
    • Maximum power: 5kW
  • AC/DC Rectifier:
    • 230 VAC – 48 VDC
    • 60A
  • Battery tank
    • 24 batteries
    • 2 VDC, 1000 Ah per battery

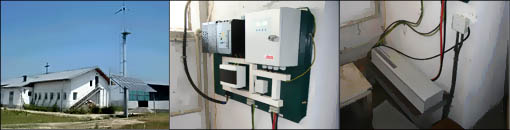

NESL Wind-PV
