Photovoltaic Movable System

GENERAL DESCRIPTION:

Power supply for remote consumers:

  • Holiday dwellings, weather stations,etc.
  • Iirrigation (gardens, farms), apiculture, shepherd settlements
  • Llight signals (streets, roads)
  • Sstand-alone power supply for reparations and service in isolated places
  • Portable military applications
  • Tourism: camping, mountain huts, cottages and dwellings far away from the grid

TECHNICAL DATA:

  • PV array (500 WP)  on a foldable structure on a car trail
  • Nominal voltage:                     12 VDC
  • Inverter:
    • Maximum power:        800 W
    • Output voltage:            true sine 230VAC
  • Storage battery (Pb-acid)       12 V/ 500 Ah
  • Operating temperature:         -15 - +45 °C

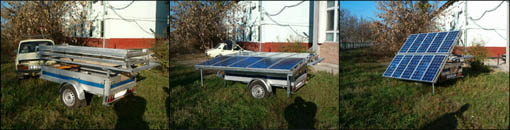

NESL Movable PV
