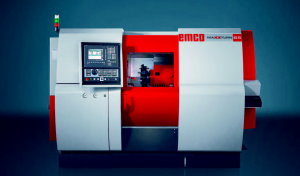

CNC high-performance turning  center for flexible machining of chuck, shaft and bar stock parts(twin spindle,12 pos. turret); size of workpieces up to Ø 500 mm, spindle bore: Ø 65  mm

  • Max. bar diameter:                 65 mm
  • Max. chuck size:                     200 mm
  • Max. speed range:                   5000 rpm
  • Drive power main spindle:      29 kW
  • Drive power turret:                 6.7 kW

 Work area

  • Travel in X/Y/Z: 260 / 80 (+/- 40) / 610 mm
  • Bar diameter: 65 (77) mm
  • Max. turning diameter: 500 mm
  • Swing over bed: 610 mm
  • Distance between centers: 600 mm
  • Spindle distance: 830 mm
  • Rapid motion speeds in X/Y/Z: 24/12/30 m/min

Main spindle

  • Max. speed: 5000 rpm
  • Spindle nose: A2-6
  • Max. drive power: 29 kW
  • Max. torque: 250 Nm

Counter spindle

  • Max. speed: 7000 rpm
  • Spindle nose: A2-6
  • Max. drive power: 22 kW
  • Max. torque: 130 Nm

Tool turret

  • VDI size: 30
  • Number of tools: 12
  • Driven tools: 12
  • Max. speed: 5000 rpm
  • Max. drive power: 6.7 kW
  • Max. torque: 25 Nm
