Servodrives

Drive

Characteristic

 Unit

SP-EV-12-0,25

SP-EV-24-0,5

 SP-EV-24-1

 SP-EV-36-1,5

 SP-EV-24-2

 SP-EV-48-3

 SP-EV-48-4
Rated Voltage

 V

 12

 24

 24

 36

 24

 48

 48

Rated Torque

 Nm

 0,8

 1,2

 4

 5,3

 6

 10

 15,3

Rated Speed

 rpm

 3000

 4000

 2500

 2700

 3200

 3000

 2500

Rated Power

 kW

 0,25

 0,5

 1

 1,5

 2

 3

 4

Rated Current

 A

 27

 25

 50

 45

 95

 70

 95

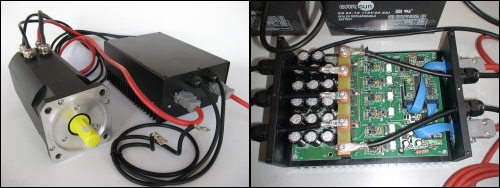

The propulsion system consists of:

  • permanent magnet sychronous servomotor (SP-EV-X-Y-MS)
  • drive unit (SP-EV-X-Y-BAC), featuring:
    • speed control – using the signal supplied by the specific devices on the vehicle
    • electronic current limitation
    • recuperative braking

The propulsion system series manufactured by ICPE SA – SERVOMOTORS Department is suitable for light electric vehicles, such as: bicycles, scooters, tri-cycles, 4-wheeled light electric vehicle



Benefits:

  • covers all the range of propulsion systems for light electric vehicles, regarding both power and voltage
  • customizing the propulsion system to the particular vehicle can be made either by the manufacturer or the client
  • motor + drive unit embedded design leads to better characteristics and lower cost
  • custom sizes are also available
  • versatility and fast response to customer demand
